Turning Pitch Stability into Pitch Control
Pitch control is not about producing more lift. It is about changing how the tail supports the airplane in pitch.
Until now, the horizontal tail has been defined as a stabilizing surface. Its placement, sizing, planform, and airfoil determine how it contributes to pitch stability and trim.
But an airplane must also control pitch actively.
This is the role of the elevator.
Located on the trailing edge of the horizontal tail, the elevator changes the aerodynamic force produced by the tail. Because that force acts far from the center of gravity, it creates a pitching moment and allows the airplane to rotate nose-up or nose-down.
The stronger that change in tail force, the more pitch authority the airplane has.
In practice, the first design choice is not the control throw.
The first design choice is the elevator surface ratio: how much of the horizontal tail remains fixed, and how much of it moves.
Surface Size and Tail Interaction
Elevator effectiveness depends mainly on the movable area relative to the complete horizontal tail.
Here, horizontal tail area means fixed stabilizer plus elevator.
Unlike ailerons, the elevator usually does not need a separate span architecture. The preferred default is to make it extend across most of the horizontal tail span, or as close to full-span as the layout allows. A longer elevator can stay shallower and more progressive than a short, deep one.
A larger elevator gives more pitch authority for a given deflection. A smaller elevator can still work with more throw, but larger deflections add drag, make the response less clean, and can become harder to manage.
So elevator sizing is not an isolated number.
It must remain coherent with the horizontal tail volume, the horizontal tail lever arm, and the intended mission of the airplane.
The elevator adds control authority. It does not fix a stabilizer that was poorly placed or undersized in the first place.
Practical Limits and Mission-Consistent Ranges

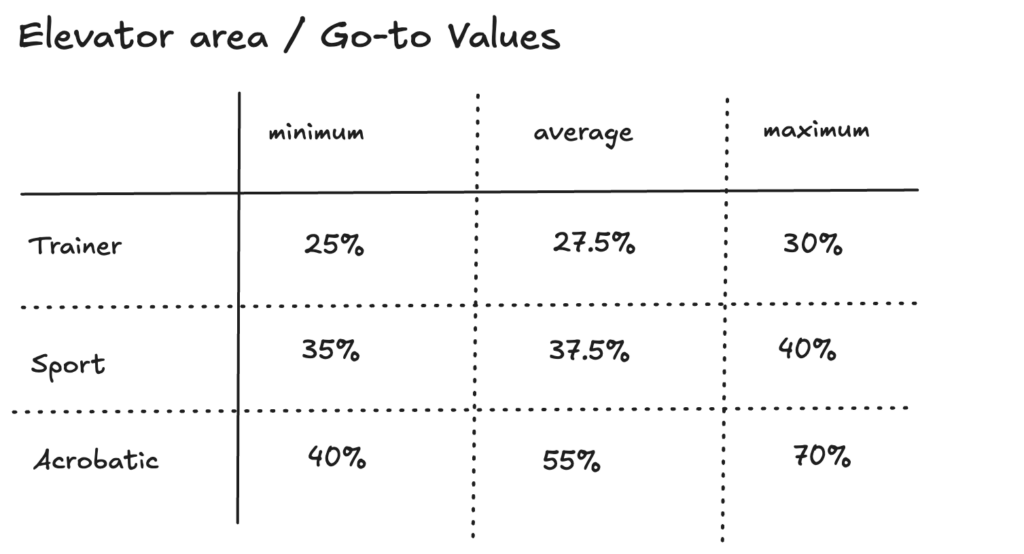

For practical design, elevator sizing can be treated as a surface ratio.
These values are starting ranges, not fixed rules.
As elevator area increases, setup matters more. Large elevators can be useful, but they also make the airplane more sensitive. Linkage geometry, control throws, exponential, and pilot skill become more important as the movable surface occupies more of the tail.
The goal is not to make the elevator as large as possible.
The goal is to give the airplane enough pitch authority for its mission without making the response harder to manage than necessary.
Completing Pitch Control
At this point, the horizontal tail is no longer only a stabilizing surface.
Its fixed portion provides the baseline pitch stability defined by the earlier tail decisions. Its movable portion gives the pilot the authority to command pitch deliberately.
The tail now provides both stability and control in pitch.
The next step is the vertical tail, which plays the same broad role for yaw: first as a stabilizing surface, then as the foundation for active directional control.
