How the tail gains pitch leverage
With overall fuselage layout established, the question is now leverage.
Tail lever arm is the horizontal distance between the center of gravity and the aerodynamic center of the horizontal stabilizer. It determines how effectively the tail can generate pitch-stabilizing moment.
It is a design parameter. It can be selected early, used as a working assumption, and refined as the rest of the design takes shape.
Tail lever arm as a design parameter
Tail lever arm defines how much mechanical advantage the tail has over the airplane.
It sets the conditions under which the horizontal stabilizer operates. A given tail surface can behave very differently depending on how far it sits from the center of gravity.
Tail lever arm does not solve stability. It defines how much leverage is available to solve it.
What tail lever arm changes
A longer tail lever arm increases leverage.
The horizontal stabilizer can produce the same pitching moment with less aerodynamic force. This often allows a smaller tail surface and supports smoother pitch behavior.
A shorter tail lever arm reduces that leverage.
Because the stabilizer sits closer to the center of gravity, it must work harder or become larger to produce the same effect. The airplane becomes more compact, but pitch response becomes quicker and more immediate.
This is the core trade-off. More rear distance improves leverage and reduces tail demand, but increases fuselage length, structure, and often drag. Less rear distance produces a tighter airplane, but requires more tail surface to recover the same stabilizing effect.
Tail lever arm is not a question of length alone. It balances leverage, tail size, compactness, and mission.
Design envelope
Tail lever arm is defined as the distance from the center of gravity to the aerodynamic center of the horizontal stabilizer. It can be expressed relative to the wing’s mean aerodynamic chord or related to overall fuselage length.
In practice, it is chosen within a bounded envelope.
A practical lower limit is:
Tail Lever Arm ≥ 2 × Mean Aerodynamic ChordBelow that threshold, the tail sits too close to the center of gravity to provide sufficient leverage without relying on a large surface.
Another useful reference is to relate tail lever arm to fuselage length. In many airplanes:
Tail Lever Arm ≤ 60% of Total Fuselage LengthBeyond that point, gains in leverage tend to come at the cost of increased structure, weight, and length, with diminishing returns.

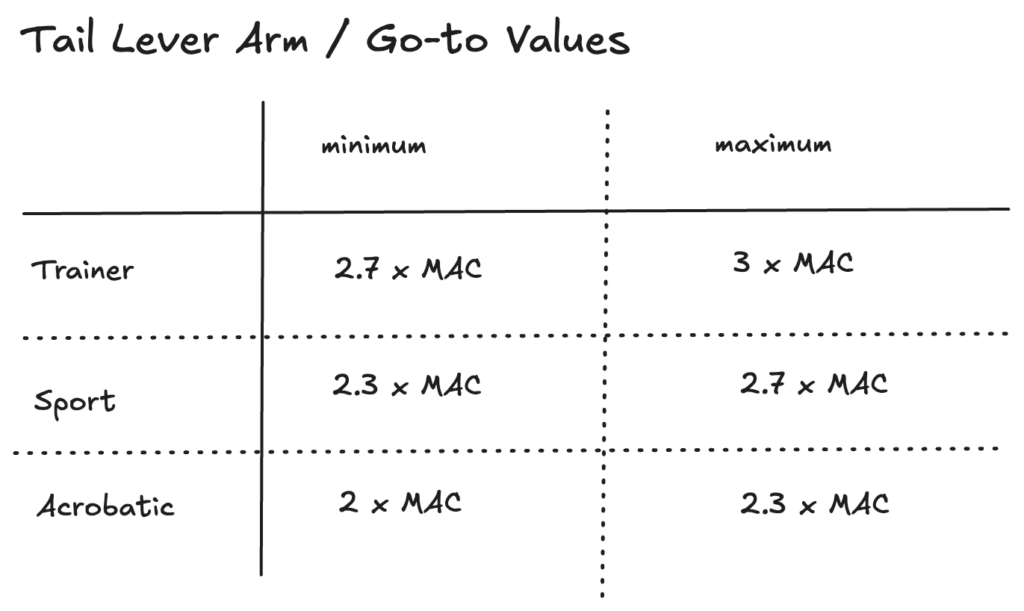

Within this envelope, different missions favor different positions.
Toward the longer end, stability-oriented airplanes gain smoother pitch behavior and more efficient leverage. Toward the shorter end, compact sport and aerobatic airplanes trade leverage for faster response, often combined with larger tail surfaces.
These are not presets. They are ranges.
A trainer benefits from more rear distance and less tail demand. A sport airplane balances leverage and compactness. An acrobatic airplane may accept a shorter rear arm to favor immediacy, provided the tail is adjusted accordingly.
The correct value is not the longest or shortest one. It is the one that fits the mission without unnecessary penalties.
What tail lever arm sets, and what remains open
Once tail lever arm is chosen, some aspects of the design become strongly conditioned.
Leverage is set. The relationship between pitch stability and tail size is no longer arbitrary. Fuselage length and the tail’s mechanical advantage now operate within a narrower envelope.
At the same time, important refinements remain open. Horizontal tail area, planform, incidence, control deflection, and final pitch feel can still be adjusted.
Tail lever arm does not finish the tail design. It gives it a geometric context.
It defines the rear half of the airplane’s longitudinal system.
The next question is whether the forward geometry makes the airplane easy to balance.
That is the role of the front lever arm.
